Low voltage switchgear
- GGD
- Aluminum/Copper
- China
- customizable
- 10000 pcs

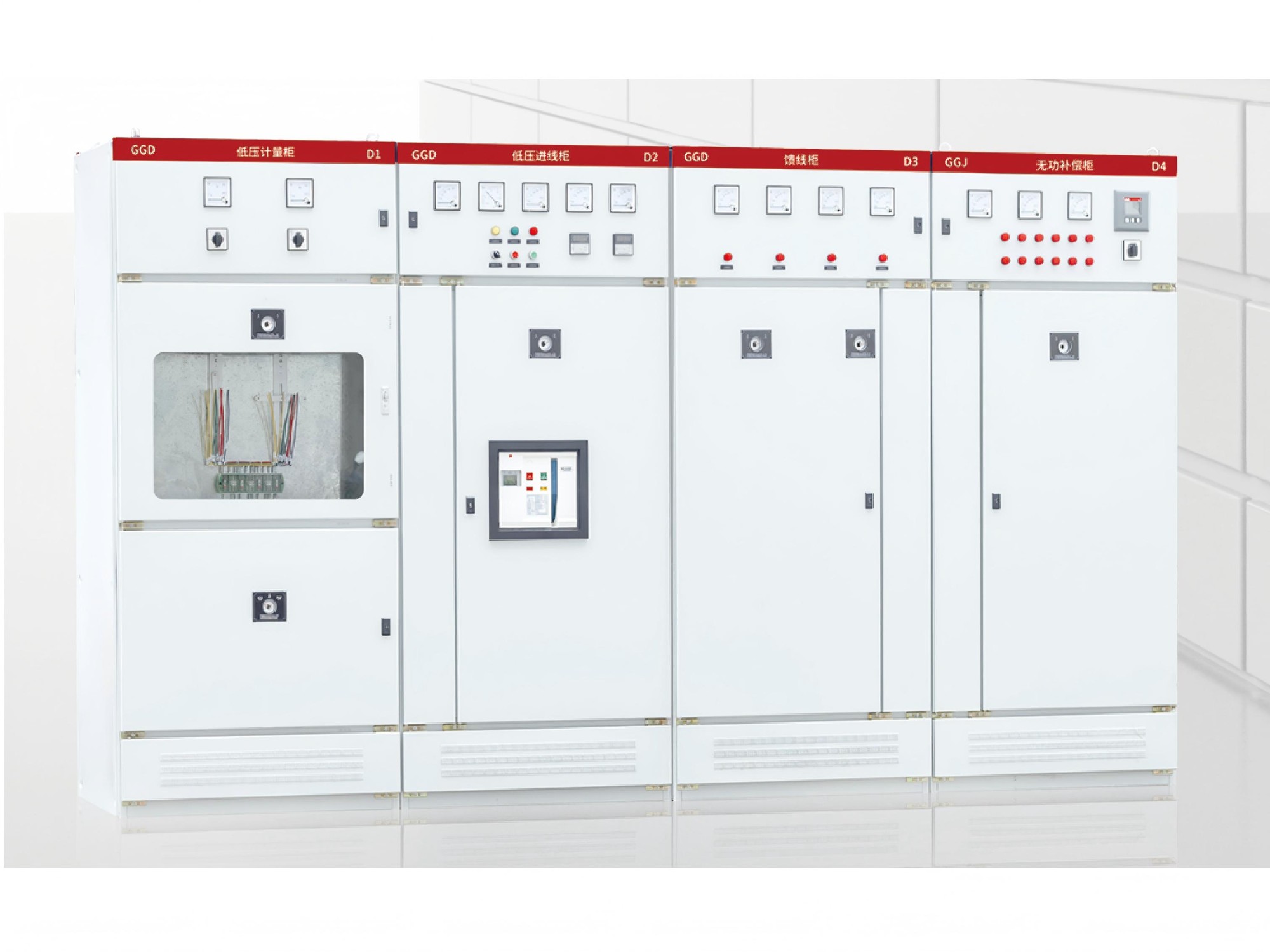

GGD Type AC Low-Voltage Power Distribution Cabinet: 8MF cold-formed steel frame, modular design and natural air duct heat dissipation, golden section appearance, full grounding protection, sprayed plastic matte texture, optional protection class IP20/30/40, suitable for industrial power distribution scenarios
STRUCTURE INTRODUCTION:
◇GGD cabinet according to the requirements of modern industrial product design,the golden section ratio method is used to design the cabinet appearance and the partition size ofeach part,so that the whole cabinet is beautiful and elegant.
◇The cabinet door is connected to the frame with rotating shaft movable hinge,easy to install and disassemble.There is a mountain rubber and plastic strip embedded in the hem of the door.When closing the door,the insert strip between the door and the frame has a certain compression stroke,which can prevent the door from directly colliding with the cabinet and improve the protection level of the door.◇The instrument door equipped with electrical components is connected to the frame with multiple strands of soft copper wire, and the installation parts in the cabinet are connected to the cabinet frame with knurled screws.The whole cabinet constitutes a complete grounding protection circuit.
◇The surface of the cabinet is sprayed with plastic,strong adhesion,good texture,the whole cabinet is matte color,avoiding glare effect,creating a more comfortable visual environment for the staff on duty.
◇The top cover of the cabinet can be removed when needed to facilitate the assembly and adjustment of the main bus line on site. The four corners of the cabinet top are equipped with hanging rings for lifting and loading.
◇The protection level of the cabinet is IP30,and the user can also choose between IP20 and IP40 according to the requirements of the use environment.
