- HWX-12
- Aluminum/Copper
- China
- customizable
- 10000 pcs

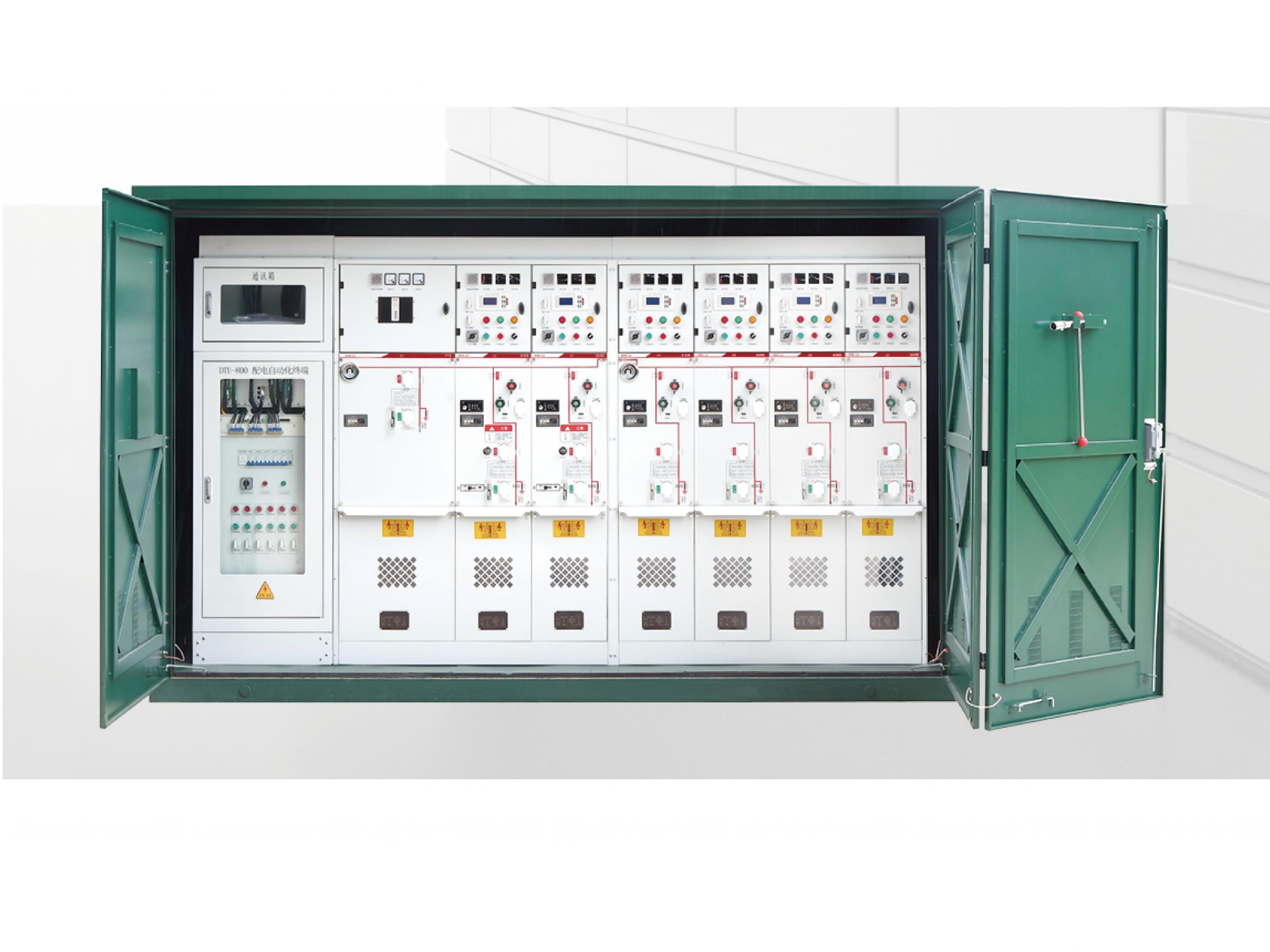

HWX-12 cable branch box(outdoor opening and closing)is the company adopts foreign professional technology,according to the characteristics of China's regional distribution network and the actual situation of urban distribution network cable transformation,the development and production of inflatable outdoorring cabinet with international professional standards.
HWX-12 cable branch box(outdoor opening and closing)adopts SRM-12/24 series SF6 fully sealed and fully insulated ring network switchgear,which has the advantages of modularity,extensibility,fully insulated,fully sealed,safe and reliable, maintenance-free,etc.,suitable for any harsh environment.It is widely used in industrial parks,residential areas,streets,airports, various buildings,bustling commercial centers and other places.
HWX-12 cable branch box(outdoor opening and closing)standard voltage level 12kV,24kV,can expand the distribution network automation function,realize the intelligence of the ring network cabinet,make the power grid stronger and smarter.
WORKING CONDITION:
◇Ambient temperature:maximum temperature+50℃,minimum temperature -40℃,maximum daily average temperature does not exceed 35℃;
◇Relative humidity:daily average is not more than 95%,monthly average is not more than 90%;
◇Wind speed:not more than 35m/s;
◇Pollution level:Ⅲ;
◇Seismic intensity:8 degrees;
◇Ground inclination:no more than 3 degrees;
◇Installation location:Installed in a place with no fire,explosion or violent vibration,good ventilation and no corrosive gases.
Special condition
◇When the equipment is installed at an altitude of more than 1000 meters,it needs to be specially noted so that the company can adjust the SF6 pressure during manufacturing.
◇If special adverse conditions are involved,be sure to consult the company.
